free plans: how to make a

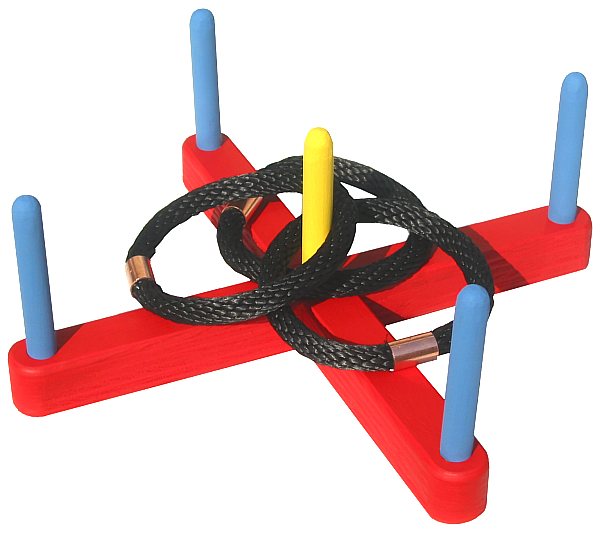

Ring Toss Game
Basic Description This ring toss game is easy to make by anyone with basic woodworking knowledge. The game is great fun indoors or out, and is well suited for people of all ages.
Materials Plywood, wooden dowel, thick rope, paint, glue, wood screws. A complete material list is provided below.
Tools Table saw, drill press, hand drill, router, disk sander, clamps, square. A complete tool list is provided below.
Cost The plan itself is free! Estimated cost of materials: $7
Time 3 hours
Difficulty Easy
Legal Notice Use of this website constitutes acceptance of our terms of service policy.


the project plan begins here


step:     1



The first step involves acquiring the necessary materials and proper tools. It is best to get everything prepared before commencing because this allows you to progress without unnecessary interruptions.
ring toss game

Material List

Item Qty. Description
#1 - Hardwood or plywood for the base. You can make the ring toss game in a variety of sizes; we used two pieces of 3/4" x 1.5" x 16" (20 x 40 x 400mm) and two pieces of 3/4" x 1.5" x 7.25" (20 x 40 x 180mm) plywood
#2 10 Wood screws or drywall screws. The length of the screws should be about 1.5 times the thickness of the wood you are using - we used 1.25" (30mm) long screws.
#3 - Woodworking glue
#4 5 Wood dowel. We used a 3/4" (20mm) diameter hardwood dowel. You will need five pieces about 5" (125mm) long.
#5 - Paint. We used three different colors of standard craft paint.
#6 3 Rope, nylon preferred, but other types will suffice. We used three 16" (400mm) long ropes that were 1/2" (13mm) in diameter.
#7 3 Copper couplings and construction adhesive to fuse the ends of the ropes into rings; alternatively tape can be used.
#8 - Polyurethane coating (optional). After the paint dries, you can follow with a coat of clear polyurethane for increased durability.

Tool List

Tool
Drill press with forstner bit to match diameter of dowel
Hand drill with countersinking bit
Disk sander
Clamps
Square
Table saw
Router with rounding over bit
Paintbrush
Candle and matches (to fuse end of nylon rope as a means of minimizing fraying)
